The VL-FTX-II-1310 forward transmitters are part of a new series in the Vlink optical transmission platform that will mix with other VL-FTX series to integrate into the same VL-link Chassis. The module contains a high performance, advanced pre-distortion circuitry achieves superior CSO and CTB, and ideal for broadcast and narrowcast applications. It can provide a wide range of optical output power to deliver both analog and digital signals. All configuration parameters of modules can be monitored by LED screens on the front panel of the module, or by the VL-EMS equipment management module.

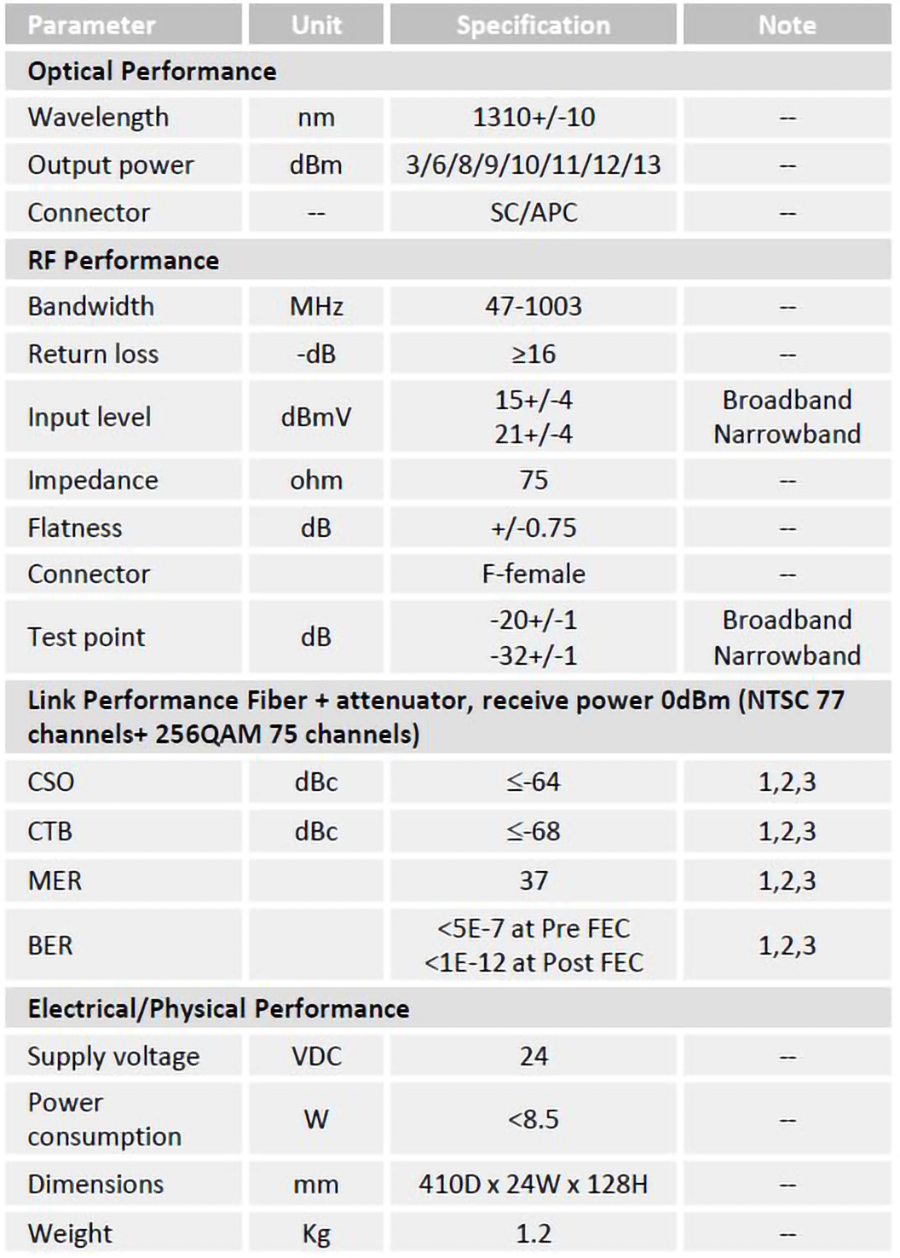

Notes:
1. All measurements are taken with Aurora AR3002G receiver
2. QAM channels start at 561MHz (center frequency) up to 999MHz center frequency
3. Link Performance 15km Fiber + attenuator, receive power 0dBm (NTSC 77 channels + 75 channels 256QAM)
Stresses in excess of the absolute maximum ratings can cause permanent damage to the device. These are absolute stress ratings only. Functional operation of the device is not implied at these conditions. Exposure to absolute maximum ratings for extended periods can adversely affect device reliability.
